Welded Gabion Mesh
Your Professional Welded Gabion Mesh Supplier
Hebei Xinjuyuan Protective Net Engineering Co., Ltd. is located in the Anping Development Zone, the core area of Hebei Province. It is adjacent to Xiong'an New Area, close to Tianjin Port, and enjoys convenient transportation. Our company is a manufacturer of gabion nets, defense barriers, tank winding nets, border fence nets, various types of fence nets, military protection nets, slope protection nets, hexagonal nets, and razor barbed wires. We specialize in the production of various metal wire meshes. Our products are mainly used in river management, border defense, military supplies, embankment slope protection, riverbed protection, ecological greening, and other water conservancy and ecological protection projects.
-
![Welded Gabion]()

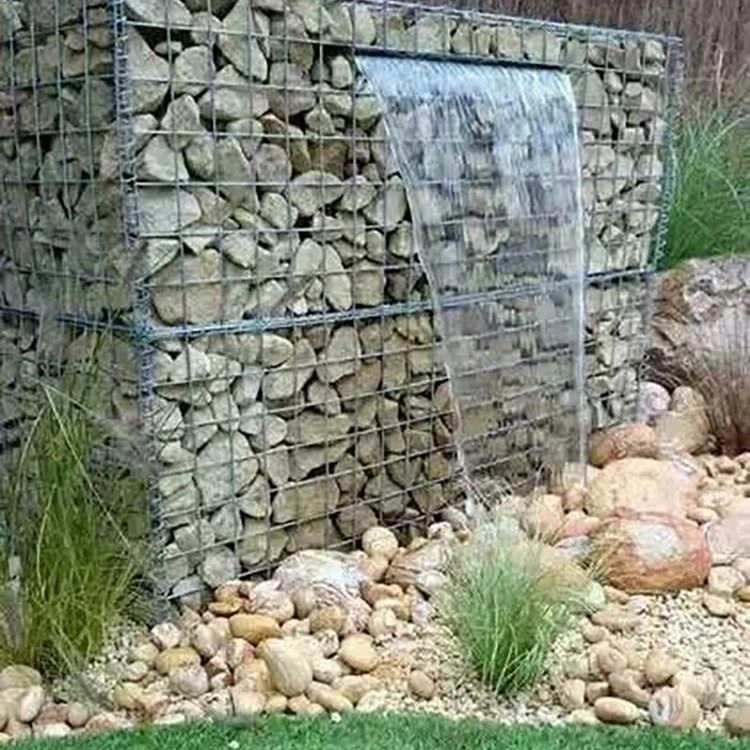

Welded GabionWelded gabion is a mesh that is assembled with spiral wires to form the front and rear panels, bottom plates and partitions, and then compressed and packaged together with the mesh cover. All...read more -
![Gabion Mesh]()
Gabion MeshGabion mesh ecological grid is a mesh made of corrosion-resistant, wear-resistant, high-strength low-carbon high-galvanized steel wire, 5% or 10% aluminum-zinc rare earth alloy coated steel wire...read more -
![Gabion Stone Retaining Wall]()
Gabion Stone Retaining WallGabion stone retaining wallis a new type of flexible retaining structure that fills stones that meet the particle size requirements into a flexible gabion mesh to achieve a certain porosity and is...read more -
![Granit Gabion]()
Granit GabionGranit gabion, also known as galvanized stone cage mesh, is a new type of environmentally friendly ecological green grid structure. It is widely used in water conservancy projects, slope...read more -
![Galvanized Gabion]()
Galvanized GabionGalvanized gabionn uses high-quality low-carbon steel wire, which is formed by automatic, precise and accurate mechanical equipment after welding according to BS1052:1986. There are many kinds of...read more -
![Mur De Gabions]()
Mur De GabionsMur de gabions is also called gabion retaining wall, retaining wall gabion net,.First of all, the gabions used to hold stones are made of high-quality low-carbon steel wire twisted and woven by a...read more
Why Choose Us
Certifications
We have obtained ISO9001:2008, ISO14001:2004, and GB/T28001:2001 (Occupational Health and Safety Management System) certifications.
Production Equipment
Our factory is equipped with 20 gabion net production lines, 12 protective net production lines, 50 tank winding net production lines, 20 razor barbed wire production lines, and 6 fence net production lines. The output fully meets industry standards.
Partners
We cooperate internationally with countries such as the United States, Australia, Canada, Germany, the United Kingdom, Spain, and others.
Welded Gabion Mesh
Welded Gabion is made of welded wire mesh panels assembled with spirals, locking pins and stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.
Welded wire gabion mesh is made of high quality low carbon steel wire, in strict accordance through automation, precision, accurate mechanical equipment processing forming after welding, then uses electric galvanized, hot dip galvanized, PVC or PE coated surface treatment after every process such as surface passivity, plasticizing processing.
Welded wire gabion mesh is use spiral bind silk and the front and back welding forming panel to be together, floor diaphragm compression after assembled, packaged with net cover. Folding binding good stone cage all product, is an independent individual. Spiral binding wire shipped in a box, in order to ensure the quality, please put it dry environment.
Technical Specification
Leading supplier of gabions, offering all shapes and sizes. Everything from gabion baskets, mattresses, cages, walls, fence and more. Low Price Guarantee!
|
Material |
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire |
||
|
Wire Diameter |
3 mm-6 mm |
||
|
Aperture |
50*50 mm, 50*100 mm etc |
||
|

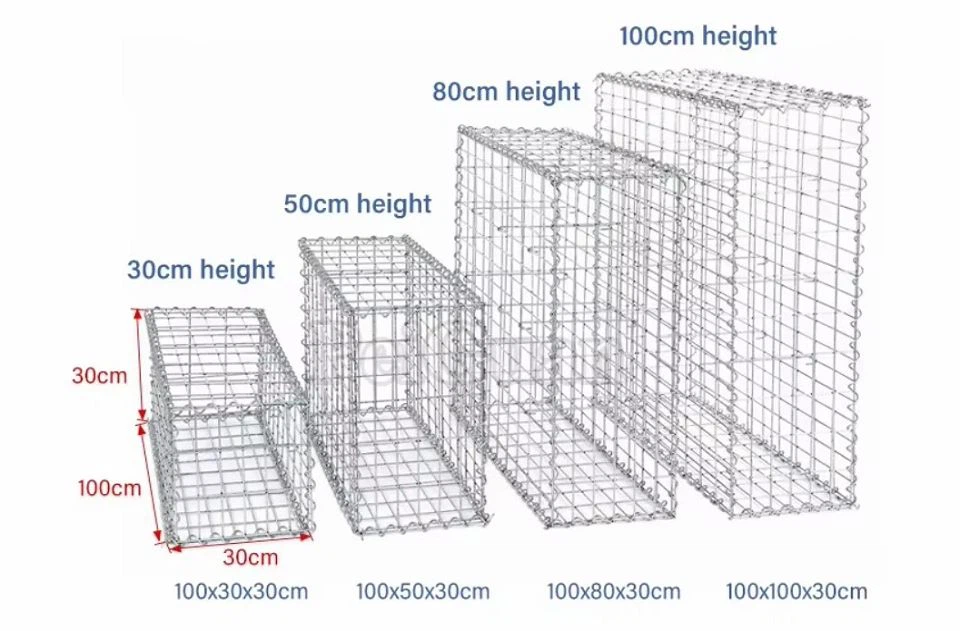

Gabion Box Size |
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc. |
||
|
Finish |
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated. |
||
|
Normal Box Size(cm) |
Diaphragms |
Capacity (m3) |
Mesh Size(mm) |
|
100x30x30 |
None |
0.09 |
|
|
100x50x30 |
None |
0.15 |
|
|
100x100x50 |
None |
0.5 |
|
|
100x100x100 |
None |
1 |
|
|
150x100x50 |
1 |
0.75 |
|
|
150x100x100 |
1 |
1.5 |
|
|
200x100x50 |
1 |
1 |
|
|
200x100x100 |
1 |
2 |
|
|
Other sizes can be customized. |
|||
Pros of Welded Gabion Mesh
Uniformity
Welded gabions offer a precise and uniform structure, making them well-suited for applications where aesthetics and visual appeal are a primary concern.
Ease of Assembly
The welded design simplifies the assembly process, which can save time and labor costs during installation.
Stability
The welded construction provides added stability and structural integrity, making them suitable for retaining walls and load-bearing applications.
Smooth Surface
The absence of protruding wires can result in a smoother surface, making them a safer option for areas where people may come into contact with the gabions.
What Are the Uses of Welded Gabion Mesh
Retaining Walls
Used to stabilize slopes and prevent erosion.
Erosion Control
Protect riverbanks, shorelines, and slopes from erosion.
Landscaping
Create decorative features like garden walls, benches, and planters.
Sound Barriers
Reduce noise pollution in urban areas.
Fencing
Serve as durable and visually appealing fences.
Flood Control
Act as barriers to manage and redirect water flow.
QUALITY ASSURANCE
We supply gabion basket manufacture cut sheets or product informational materials for approval.
We supply the following products or materials samples for approval:
Gabion basket welded wire mesh sample, minimum 12 inch square.
Gabion basket lacing sample or other joint tying product according to customers requirements.
Stone fill samples, minimum 10 total pieces of varying specified size range.
We build a mockup to verify selections made under sample submittals and to demonstrate aesthetic effects and set quality standards for materials and execution:
Construct at least one (1) 3 foot by 3 foot by 3 foot (one cell) mockup of assembled gabion, complete with specified stone fill, for review and approval by customers.
Contractor may utilize mockup in final constructed installation provided that the mockup is located correctly on the project site and includes all required base materials, geotextile and other construction requirements according to these specifications and the project drawings.
Our Working Process
Welded Gabion Mesh Package & Loading
We can package the gabions according to the customer's requirements:
By bandaging material
By wooden pallets +plastic film
By carton, etc. We can also customize the logo on the packaging according to customer needs.
Our Certificate
FAQ
Hebei Xinjuyuan Protective Net Engineering Co., Ltd. is one of the most professional welded gabion mesh manufacturers and suppliers in China, featured by quality products and good price. Please rest assured to buy cost-efficient welded gabion mesh for sale here from our factory.
