Hebei Xinjuyuan Protective Net Engineering Co., Ltd. is one of the most experienced manufacturers and suppliers of permeable gabion mesh in China. With abundant experience, we warmly welcome you to buy cost-efficient permeable gabion mesh for sale here from our factory. Good service and reasonable price are available.
Products Description
We make gabion baskets, mattresses and mesh panels on our own production lines and sell factory-direct. Send us the wire diameter, aperture and coating you need, and we'll confirm stock or schedule the weaving within 24 hours. Most special sizes leave the workshop in two to three weeks.
Why drainage decides whether a wall survives

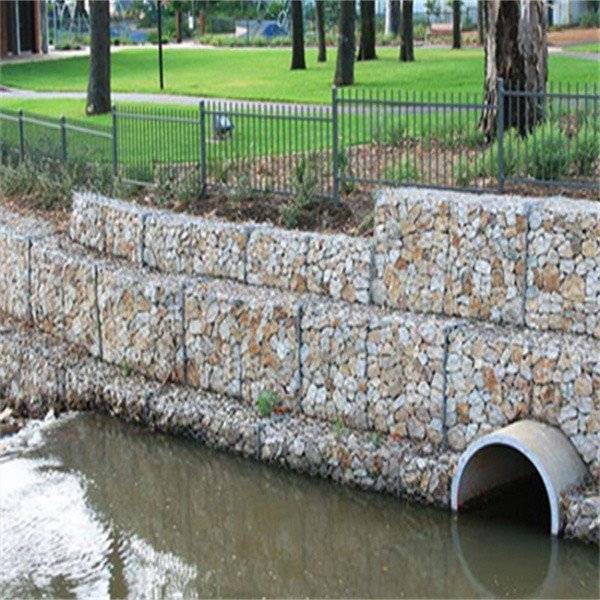

Most retaining wall failures don't come from the soil pressure you can calculate. They come from water pressure you can't see. Rain builds up behind a solid wall, the backfill turns into a sponge, and the wall takes load it was never designed for. Permeable Gabion Mesh avoids that whole problem: the stone-filled structure drains naturally, so water pressure never gets a chance to build up behind the face.
Other things you get from a gabion build
No weep holes or pipe drains to install behind the wall - the structure drains itself
The mesh flexes with the ground, so small settlement doesn't crack it the way it cracks concrete
Plants can root through the fill over time, which makes the slope stronger instead of just covering it
Site stone can be used as fill, which cuts both material cost and trucking
Specifications
|
Item |
Standard range |
|
Mesh type |
Double twist (hexagonal) / welded rectangular panel |
|
Wire diameter |
2.0–4.0 mm (twisted), 3.0–5.0 mm (welded) |
|
Aperture |
60×80, 80×100, 100×120, 120×150 mm |
|
Coating |
Hot-dip galvanized (≥245 g/m²), zinc-aluminum alloy, PVC dipped |
|
Tensile strength |
350–550 MPa |
|
Standard |
EN 10223-3, ASTM A975 |
|
Packaging |
PP woven bags or wooden pallets, per your requirement |
If your project follows a specific spec - say, a highway contract quoting EN 10223-3 with a PVC dip - send us the relevant clause and we'll match it. Every batch ships with mill certificates and a copy of the coating test report.
Twisted or welded - which one for your site

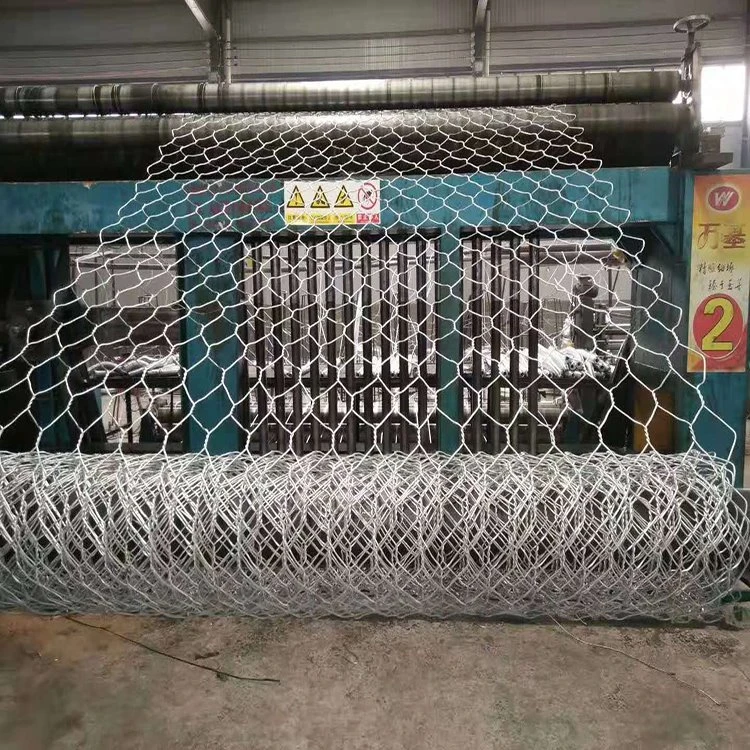

Double twist mesh is the classic gabion build
It's woven from continuous wire, so a damaged cell doesn't unravel the whole panel. That's why it's the default choice for retaining walls and river training works that get knocked around by debris and floodwater.
Welded mesh panels are stiffer, which makes them faster to assemble on site
Contractors usually pick them for visible facades and vertical walls where they want a clean, flat face. Tell us which type your drawings specify and we'll quote accordingly.
Where this mesh is used
Road and railway embankments that need soil retention without blocking groundwater
Riverbanks and channel linings, where scour protection has to let water move through
Bridge abutments, culvert outlets and other spots that catch fast water
Storm damage repair on slopes and gullies
Facing for noise barriers and landscaping walls
