Hebei Xinjuyuan Protective Net Engineering Co., Ltd. is one of the most experienced manufacturers and suppliers of mil barriers in China. With abundant experience, we warmly welcome you to buy cost-efficient mil barriers for sale here from our factory. Good service and reasonable price are available.

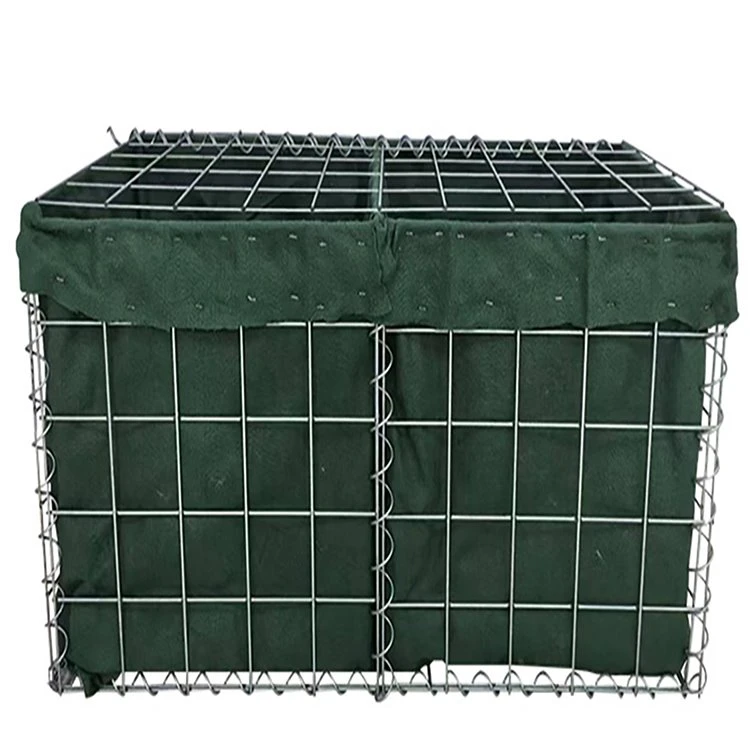

MIL Barriers are modular defensive barrier units used to build filled walls in a short time. The unit is not a plain wire cage. It includes a steel mesh frame and a textile liner, so soil or sand stays inside the cell after filling.
On many sites, MIL Barriers are picked because the work team can build a long line without heavy concrete blocks. A forklift, loader, or small machine can open and fill the cells quickly. These products can also be stored folded, which helps when the project needs spare units ready for later extension.
The core point is practical control. These products can be ordered by cell height, width, length, wire diameter, liner weight, and color. This makes the product easier to match with the real site instead of forcing every project into one fixed size. The same order can also include extra pins or spare connection parts when the site is far from the warehouse.
Product Parameters
|
Parameter |
Value |
|
Wire material |
Hot-dip galvanized steel wire or Galfan wire |
|
Wire diameter |
4.0 mm / 5.0 mm common options |
|
Mesh opening |
76.2 x 76.2 mm, welded mesh type |
|
Surface treatment |
Galvanized or zinc-aluminum coated |
|
Lining fabric |
Non-woven geotextile, about 250-350 g/m² |
|
Panel connection |
Spiral wire, pins, or ring connection |
|
Color |
Sand, green, grey, or custom fabric color |
|
Supply form |
Folded units, panels, or packed sets |
|
Typical height |
0.6 m to 2.2 m by model |
|
Typical cell length |
Project model or custom length |
Components
For MIL Barriers, welded mesh panel forms the outside frame.
Geotextile liner holds sand, soil, or small stone inside the cell.
Spiral wire or pins connect the panels during opening.
Packing straps and bundle labels help workers count sets before loading.
Packing And Checking
1. Keep folded units tied firmly before transport.
2. Mark model, quantity, and color on the outside of each bundle.
3. Check the liner stitching and mesh welding points before shipment.
FAQ
Q: Are all models the same size?
A: No. Height, width, cell count, and folded length can change by model or order.
Q: Can the fabric color be changed?
A: Yes. Sand, green, grey, and other common project colors can be discussed.
Q: How are the units moved on site?
A: Folded bundles are usually moved by forklift or loader, then opened near the filling area.
